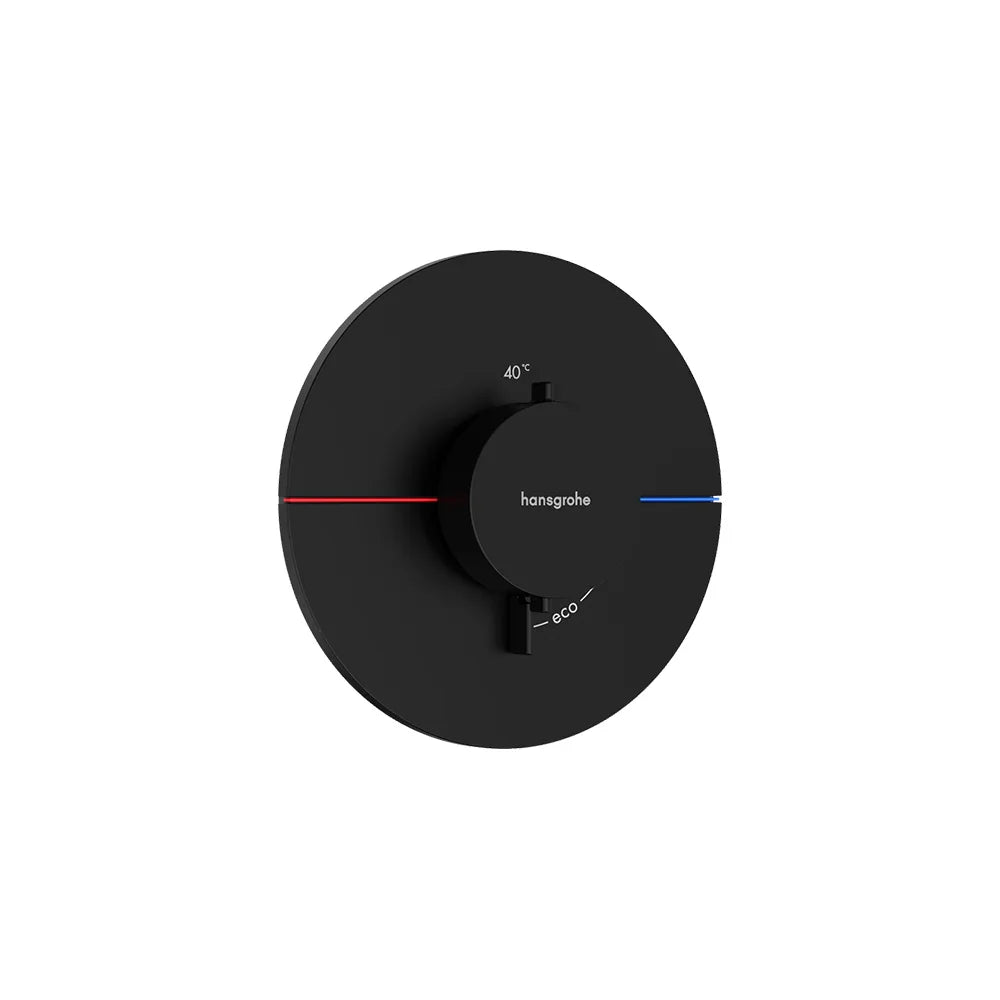

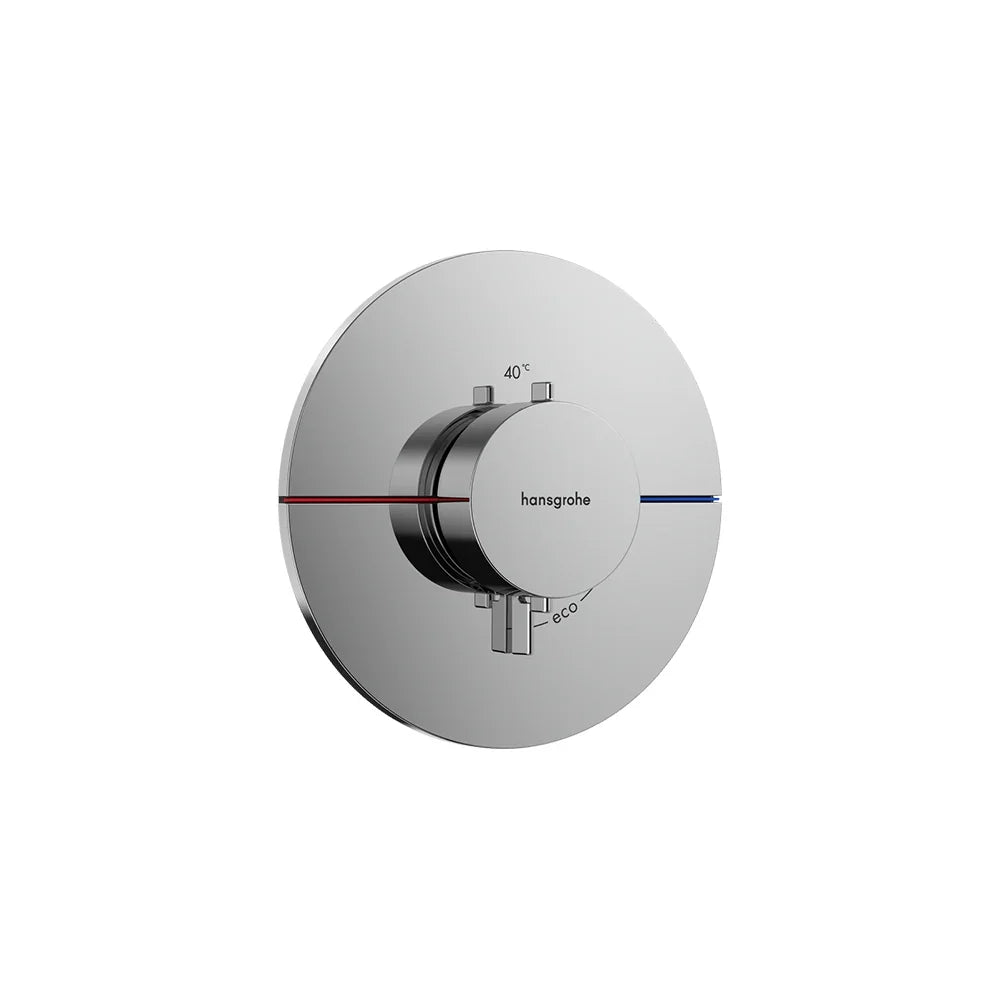

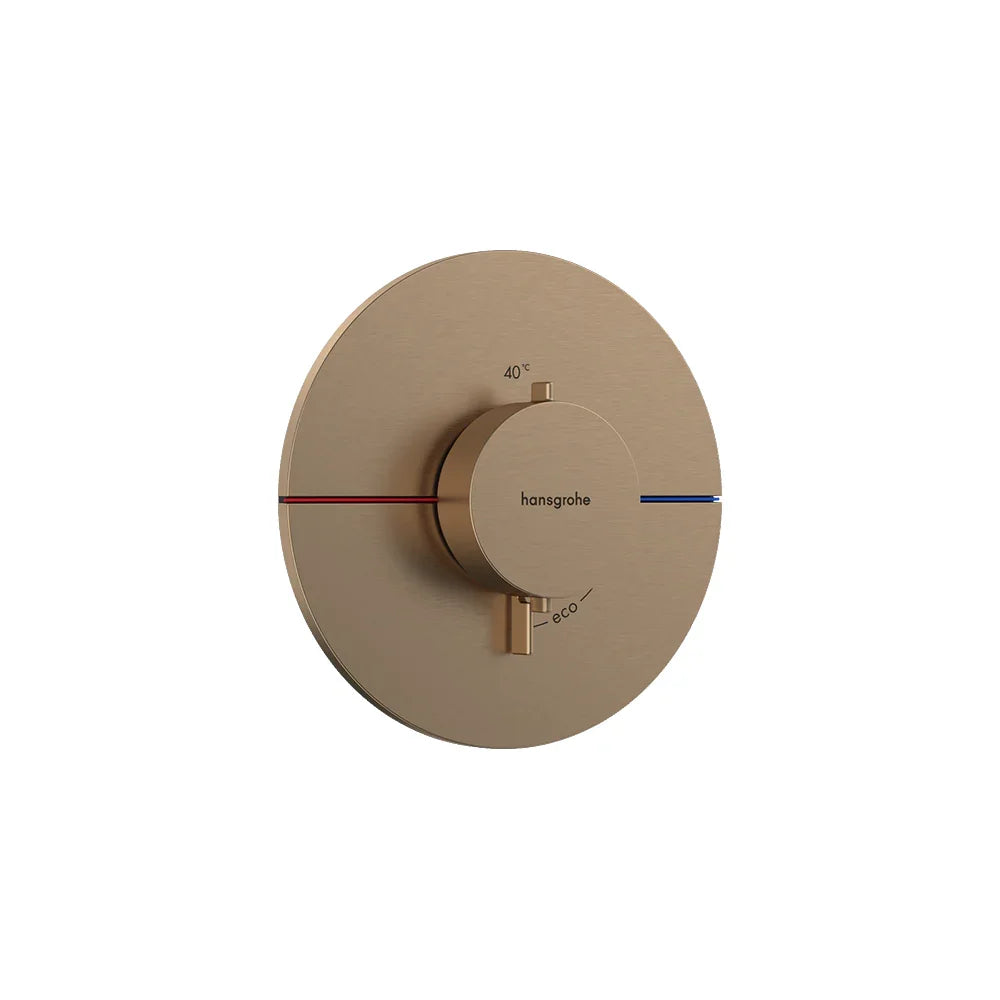

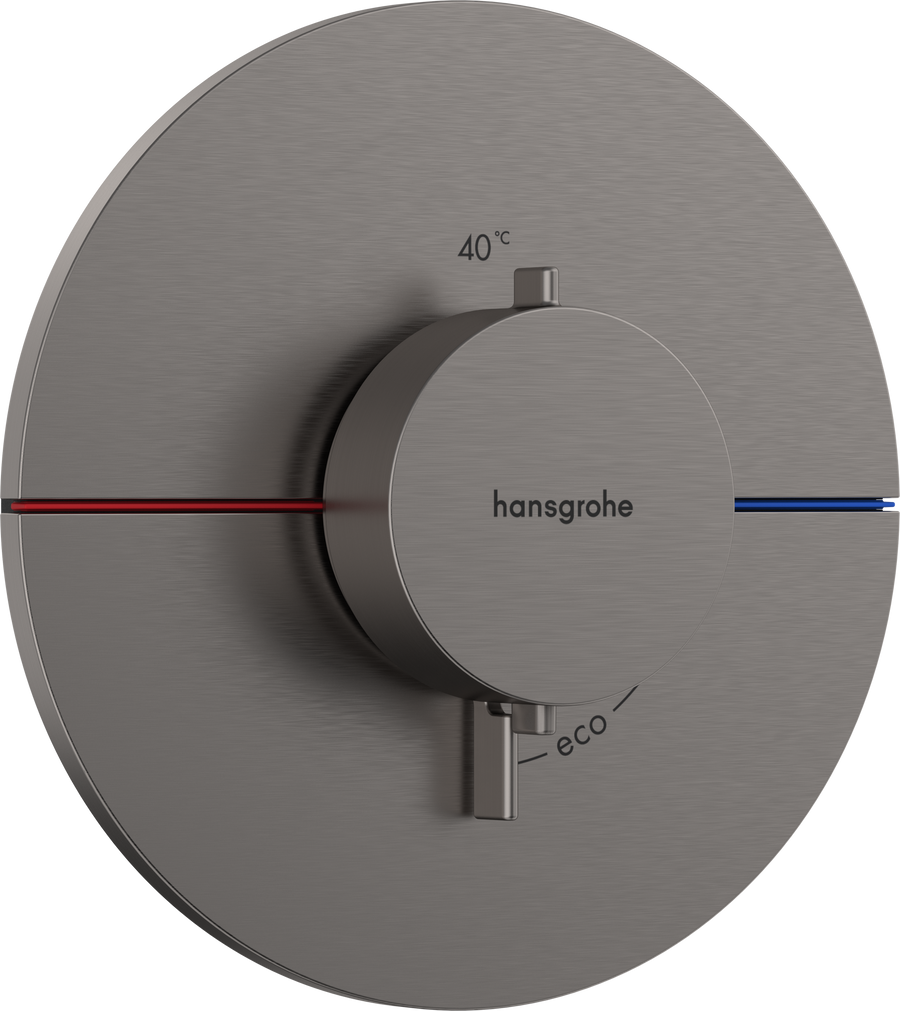

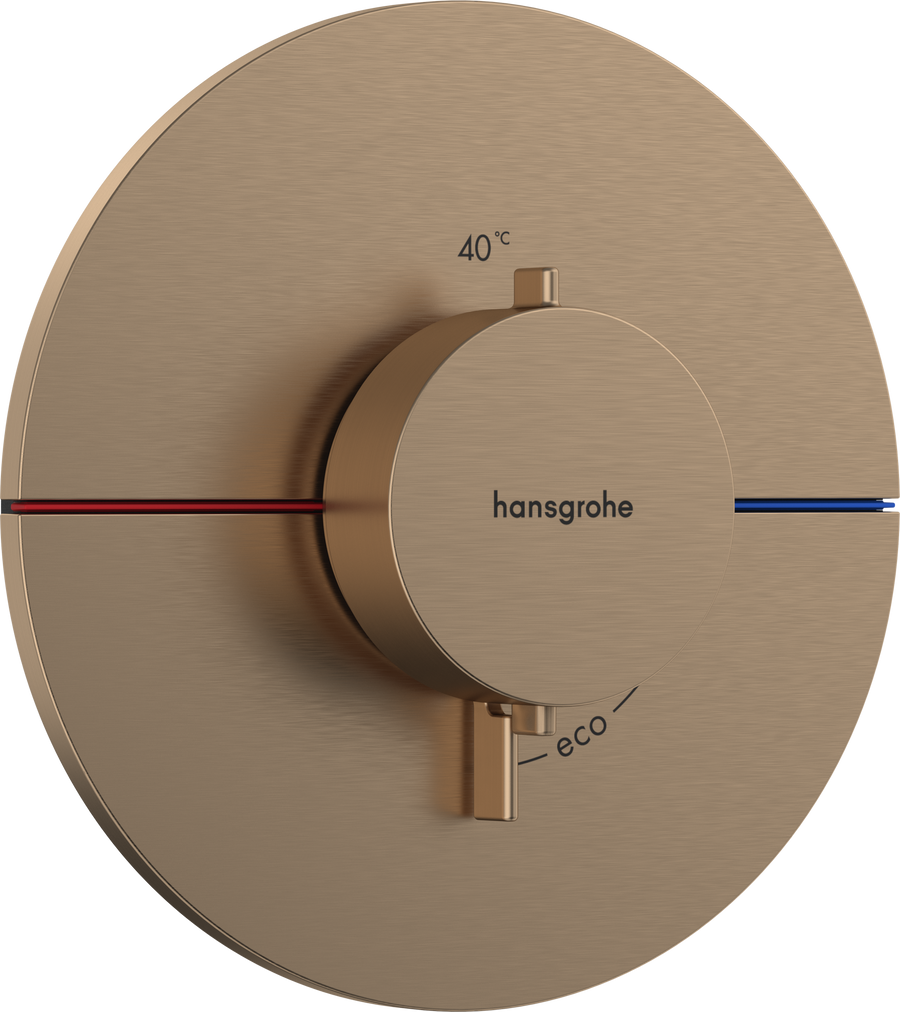

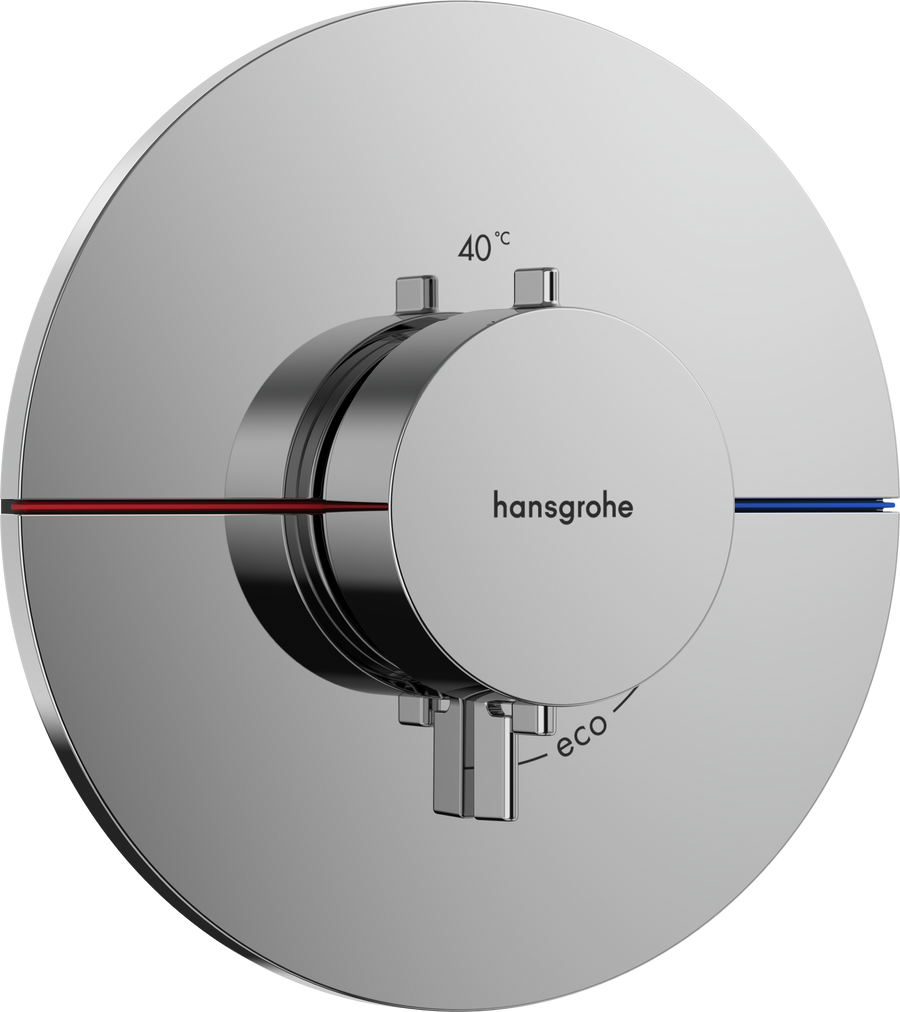

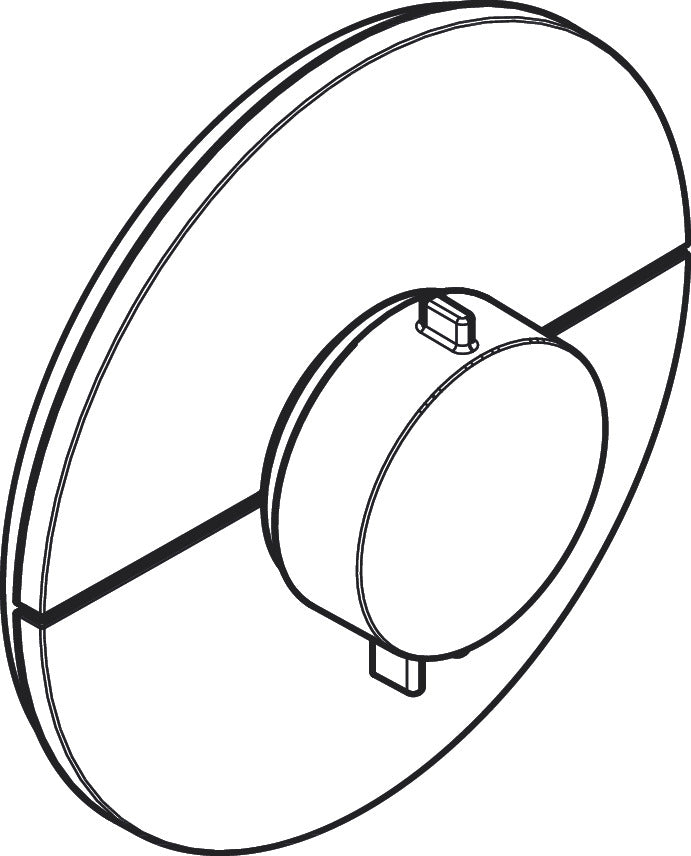

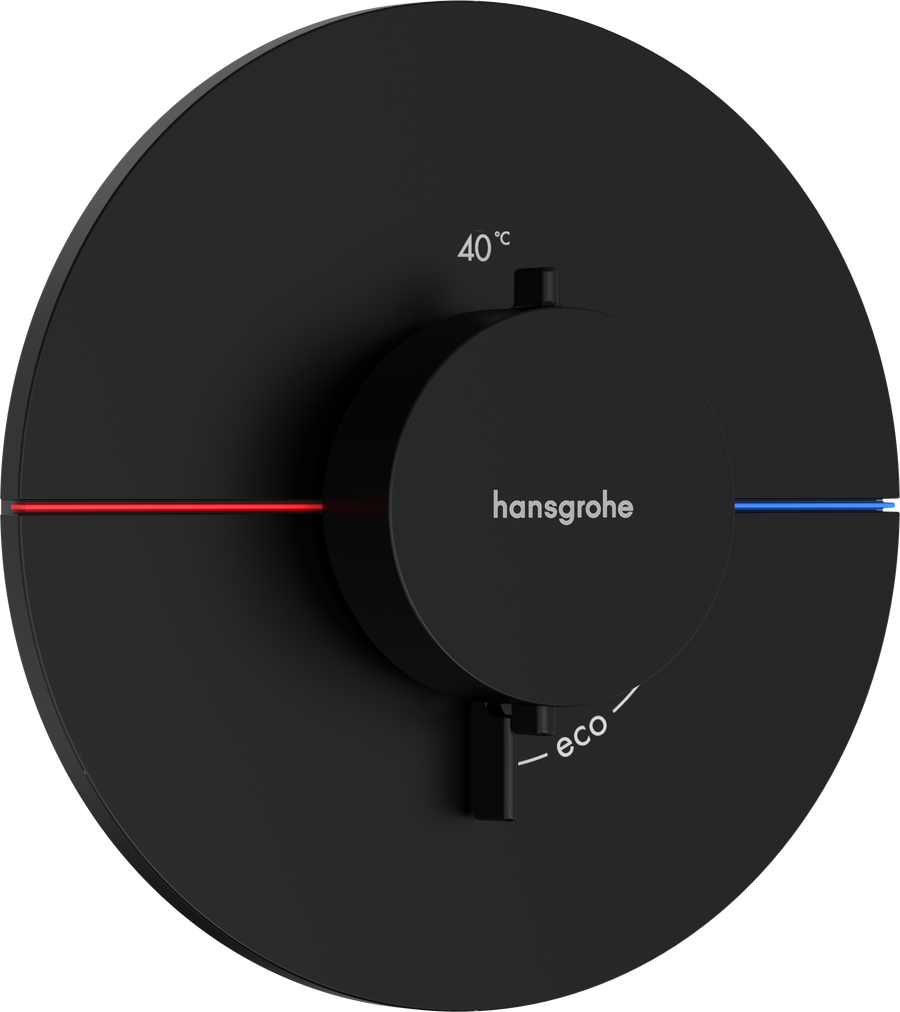

ShowerSelect Comfort S Thermostat
Product description
1 function
temperature and water flow control
Water flow control with stop function
Thermostat cartridge
Maximum flow rate at 1 bar: 19,5 l/min
Flow rate upper outlet: 32 l/min
Flow rate lower outlet: 32 l/min
Flow rate by simultaneous use of all outlets: 34,8 l/min
Maximum flow rate at 3 bar: 34,8 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled function block
Handles always at the same height regardless of the installation depth of the basic set
Safety stop at 40 °C
Temperature limitation adjustable
The thermostat offers the possibility for thermal disinfection
Material handles: metal
Connection type: basic set iBox universal 2
