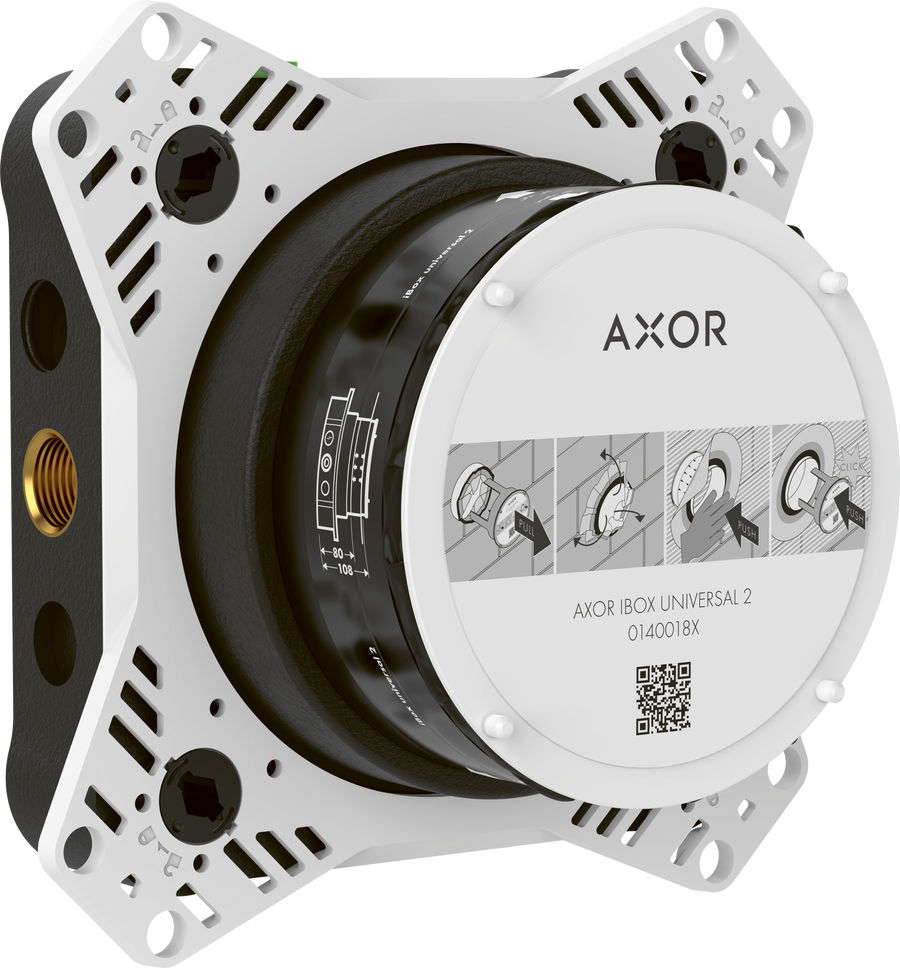

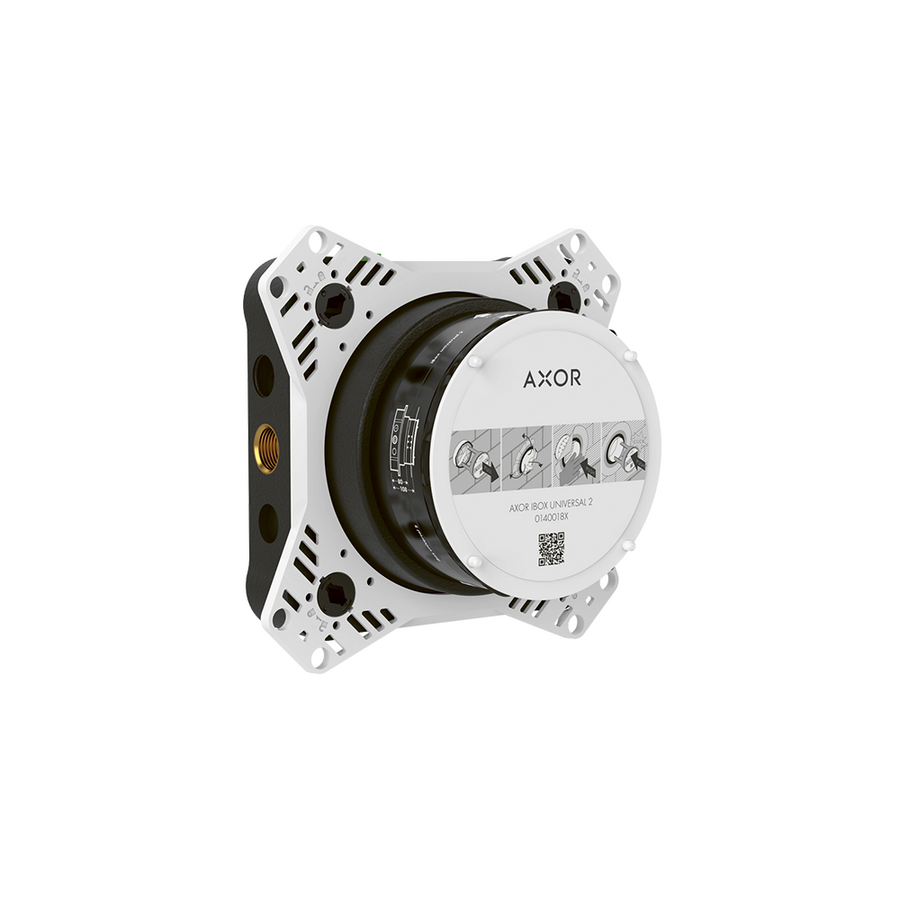

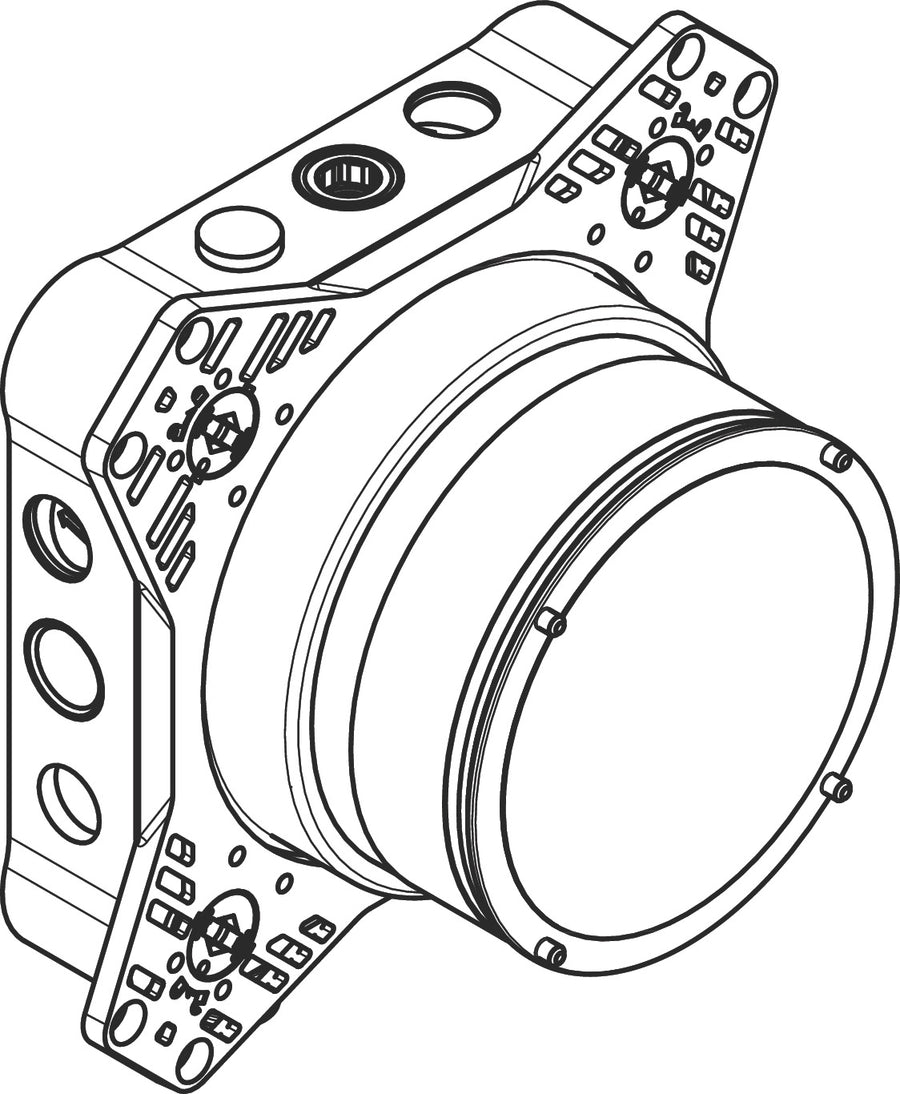

AXOR iBox 2 Universal Set
Product description
Suitable for all new shower, bath tub and thermostat finish sets for concealed installation (AXOR ShowerSelect ID)
In conjunction with adapter plate (# 13588000) compatible with other concealed shower, Bath tub and thermostat finish sets
Material: dezincification brass, EPP foam, heat and sound insulating
Connection thread: Rp ½
Connection dimension: DN15
Rotationally-symmetric installation
Sound-decoupled installation
Flexible mounting ring for different mounting situations
Mounting ring adjustable in 5 mm steps
Mounting ring suitable for front and rear installation
No shortening necessary thanks to sliding sleeve
Support aid for the spirit level
Integrated spirit level for correct horizontal and vertical alignment
Sealing foil permanently fixed
Minimum mounting depth: 80 mm
Maximum mounting depth: 108 mm
