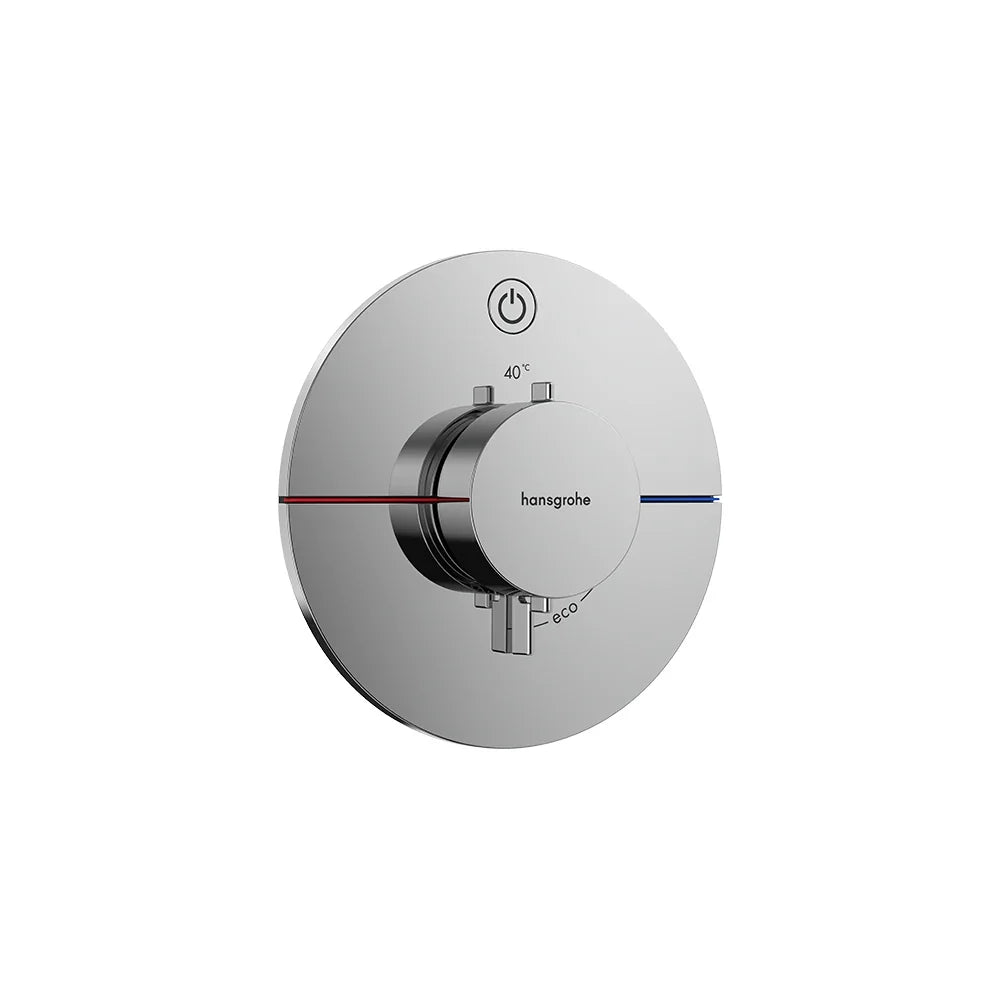

ShowerSelect Comfort S 1 Function Thermostat for Concealed Installation

1 function
Comfortable turning on / off of one outlet with large Select-paddle
Water flow control with stop function
Thermostat cartridge, Start/stop valve to operate the functions
Maximum flow rate at 1 bar: 10,8 l/min
Maximum flow rate at 3 bar: 20,3 l/min
Comfortable turning on / off of one outlet with large Select-paddle
Water flow control with stop function
Thermostat cartridge, Start/stop valve to operate the functions
Maximum flow rate at 1 bar: 10,8 l/min
Maximum flow rate at 3 bar: 20,3 l/min
Min. operating pressure: 1 bar
Max. operating pressure: 10 bar
Flat escutcheon for more space in the shower
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled function block
Handles always at the same height regardless of the installation depth of the basic set
Safety stop at 40 °C
Temperature limitation adjustable
The thermostat offers the possibility for thermal disinfection
Material button: metal
Material handles: metal
Connection type: basic set iBox universal 2
Thermostat is delivered with button On/Offin. operating pressure: 1 bar
Max. operating pressure: 10 bar
Flat escutcheon for more space in the shower
Escutcheon can be aligned by +/- 3°
Easy installation due to pre-assembled function block
Handles always at the same height regardless of the installation depth of the basic set
Safety stop at 40 °C
Temperature limitation adjustable
The thermostat offers the possibility for thermal disinfection
Material button: metal
Material handles: metal
Connection type: basic set iBox universal 2
Thermostat is delivered with button On/Off
